Welcome to the wiki of the Malyan community, an open community dedicated to providing support for Malyan 3D Printer.

If you want detailed guiding for operate your printer, please check Tutorial.

If you are looking for support for your printer from Malyan, please take a look at our FAQ first. If you still have problem, then you need to work through this wiki.

If you are interested in buying a Malyan 3D Printer, then contact local reseller or email: sales1_AT_malyansys_DOT_com.

Join the Community

This is an open wiki that thrives through user contributions. A good way to stay informed on what's going on and to get useful tips in using Malyan Printer is subscribing to the newsletter.

Of course we'd be more than happy to have you getting involved.

Malyan System

Malyan System is a China-based company founded in 2012 producing 3D printers. Malyan builds on the early progress of the Replicator and RepRap Project.

Malyan Products

Due to the popularity of the 3D printers, there are several different products out there.

First Generation

Classic wood frame model.

W150

Wood model

Technical Parameters
Type digital FDM desktop 3D printer
Heating Bed Aluminum heating plate,covered with a glass plate for protection and filament grasp
Extruder number 2 Extruders
Nozzle 0.35-0.4mm dia
Temperature heating extruder 185 for PLA,220 for ABS; heating platform 85 for ABS,N/A for PLA.
Precision X / Y axis 0.1mm, Z axis 0.01mm
Filament 1.75mm dia ABS / PLA ; also possible for PVA,HIPS,Nylon,Wood and Flexible filaments
Interface SD Card / USB
Power 110/220V, 200-240W
Input File STL,GCODE file on PC, x3g file in SD card, STL available from 123D,CAD and other drawing softwares
Compatibility Windows, MacOSX, Linux
Basic Parameters
Overall Dimensions 465L*320W*375H mm
Shipping Size 525L*400W*460H mm
Shipping Weight 14.5kg
Print Precision 0.1-0.2mm
Layer Thickness 0.1-0.4mm
Build Size 230*140*140mm

W200

Wood model 1)

Second Generation

Metal frame model.

M180

Technical Parameters
Type digital FDM desktop 3D printer
Heating Bed Aluminum heating plate,covered with a glass plate for protection and filament grasp
Extruder number 2 Extruders
Nozzle 0.35-0.4mm dia
Temperature heating extruder 185 for PLA,220 for ABS; heating platform 85 for ABS,N/A for PLA.
Precision X / Y axis 0.1mm, Z axis 0.01mm
Filament 1.75mm dia ABS / PLA ; also possible for PVA,HIPS,Nylon,Wood and Flexible filaments
Interface SD Card / USB
Power 110/220V, 200-240W
Input File STL,GCODE file on PC, x3g file in SD card, STL available from 123D,CAD and other drawing softwares
Compatibility Windows, MacOSX, Linux
Basic Parameters
Extruder number Double
Overall Dimensions 465L*320W*390H mm
Shipping Size 530L*400W*480H mm
Shipping Weight 19.5kg
Print Precision 0.1-0.2mm
Layer Thickness 0.1-0.4mm
Build Size 230*150*165mm

M300

Metal frame model. Large version of M180.

Third Generation

Metal frame smart printer model.

M450

Technical Parameters
Type digital FDM Industrial Grade 3D printer
Heating Bed Aluminum heating plate,covered with a glass plate for protection and filament grasp
Extruder number 2 Extruders
Nozzle 0.35-0.4mm dia
Print Precision 0.1-0.2mm
Layer Thickness 0.1-0.4mm
Build Size 300*300*450mm
Temperature heating extruder 185 for PLA,220 for ABS; heating platform 85 for ABS.
Precision X / Y axis 0.1mm, Z axis 0.01mm
Filament 1.75mm dia ABS / PLA ; also possible for HIPS,Nylon,Wood and Flexible filaments
Interface USB Disk / Wifi / USB connector
User Interface4.3“ Color TFT LCD with capacitive touch screen
Internal Camera 720P Camera included
Power 110/220V, 360W to 500W
Input File STL,GCODE,X3G file
Compatibility Windows, MacOSX, Linux

* All preliminary parameters above may subject to change without notice.

M150

Economy metal structure 3D printer. Prusa i3 compatible with Marlin firmware. Plain GCode is directly supported.

Technical Parameters
Type digital FDM Home Grade 3D printer
Heating Bed 3mm Aluminum heating plate
Extruder number 1 Extruder
Nozzle 0.35-0.4mm dia
Print Precision 0.1-0.2mm
Layer Thickness 0.1-0.4mm
Build Size 200*200*180mm
Temperature heating extruder 185 for PLA,220 for ABS; heating platform 85 for ABS,N/A for PLA.
Precision X / Y axis 0.1mm, Z axis 0.01mm
Filament 1.75mm dia ABS / PLA ; also possible for HIPS,Nylon,Wood and Flexible filaments
Interface Mirco USB connector
User Interface128*64 Mono-color LCD screen
Power 110/220V, 240W
Input File STL,GCODE file
Compatibility Windows, MacOSX, Linux

Fourth Generation

Metal frame smart printer model with wifi using latest MM32-series motherboard.

M160

Economy metal structure 3D printer. Marlin instruction set compatible firmware. Plain GCode is directly supported.

Technical Parameters
Type digital FDM Home Grade 3D printer
Heating Bed Removable glass heating plate
Extruder number 1 Extruder
Nozzle 0.35-0.4mm dia
Print Precision 0.1-0.2mm
Layer Thickness 0.1-0.4mm
Build Size 200*200*180mm
Temperature heating extruder 185 for PLA,220 for ABS; heating platform 85 for ABS,N/A for PLA.
Precision X / Y axis 0.1mm, Z axis 0.01mm
Filament 1.75mm dia ABS / PLA ; also possible for HIPS,Nylon,Wood and Flexible filaments
Interface Mirco USB connector, WIFI supported
User InterfaceIPS color LCD screen
Power 110~220V, 240W
Input File STL,GCODE file
Compatibility Windows, MacOSX, Linux, Windows 10 Ready

M200

Economy metal structure 3D printer. Marlin instruction set compatible firmware. Plain GCode is directly supported.

Technical Parameters
Type digital FDM Home Grade 3D printer
Heating Bed Heating plate
Extruder number 1 Extruder
Nozzle 0.35-0.4mm dia
Print Precision 0.1-0.2mm
Layer Thickness 0.1-0.4mm
Build Size 120*120*120mm
Temperature heating extruder 185 for PLA,220 for ABS; heating platform 85 for ABS,N/A for PLA.
Precision X / Y axis 0.1mm, Z axis 0.01mm
Filament 1.75mm dia ABS / PLA ; also possible for HIPS,Nylon and Wood filaments
Interface Mirco USB connector, WIFI supported
User InterfaceIPS color LCD screen
Power 110~220V, 120W
Input File STL,GCODE file
Compatibility Windows, MacOSX, Linux, Windows 10 Ready

Companion Software for M200 & M100

Drvier:

Apps:

Note:

  • Wifi and USB cannot access simultaneously. Please disconnect USB from printer if you want to use wifi function.

Wifi usage(Method A) https://youtu.be/XuO_UaUFlBI:

1. Update to latest firmware.
2. Press and holding center button on "Move" menu will enter config status. Release button when smart config dialog show. Run android app to config wifi.

Wifi usage(Method B):

1. Using command "M550 SSID" & "M551 PASSWORD" to enter AP information though terminal.
2. You will see IP show up in title bar.

Access though web browser:

  • Check IP address displayed on LCD, copy this address to web browser in computer.

How-to for M200

Firmware for M100

Mothion conroller

Copy update.bin to clean formatted microSD card. Create empty file named “fcupdate.flg”. Insert card and power on printer to update.

UI conroller

Copy lcd.bin to clean formatted microSD card. Move extruder head to trigger both X&Y. Power on printer with holding button of wifi module(center button for M200), if extruder fan start to turn indicate update started. Please wait 2 minute for update then fan will stop.

WebUI

This interface is designed by Jason Jones, thanks very much for his work.

To change original web UI, upload html file using browser to the 3rd upload box in address: http://printer_address/up

link

Quick access button usage

- Press the button will automatically start print file(file name should start with auto, Ex: auto00.g) on SD card.

- Press the button while printing will pause, press again will resume.

- Press and holding the button for 4 seconds while printing will cancel the job.

- Press and holding the button for 4 seconds in idle state will initial WIFI smart config. This function is the same as M200. Please check attachment video for configuration WIFI.

Supported Software for M150

! M150 don't required GPX

Supported Software for M180

! Please note: Platform may need to calibrate due to various first layer height in different slicer's default start gcode

If your slice software is not on this list, you can modify profile by yourself.

Getting Started

How-to and Guide

Maintenance and Repair

Other issues

Accessory

3D Print failures analysis

Problem Picture Solution

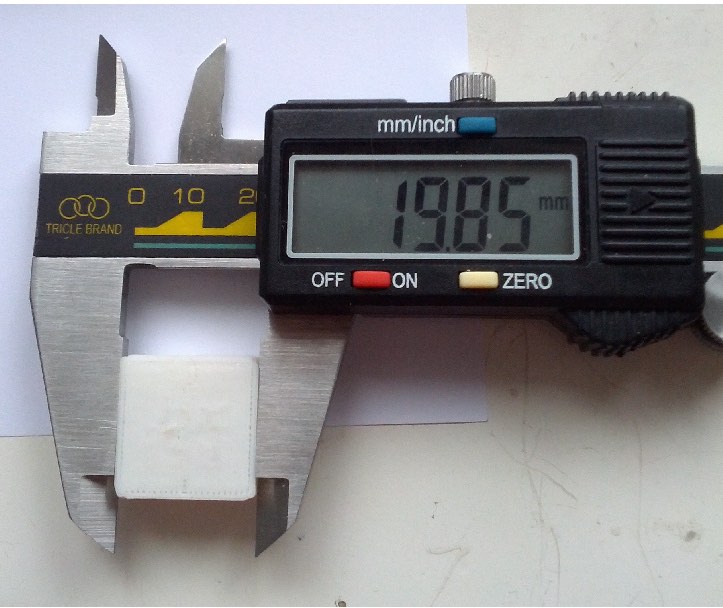

X/Y scaling wrong Recalibrate X/Y axis scale
Shifted layers Shifted layers
Skipping Steps Printing speed too fast or nozzle hit the warped model

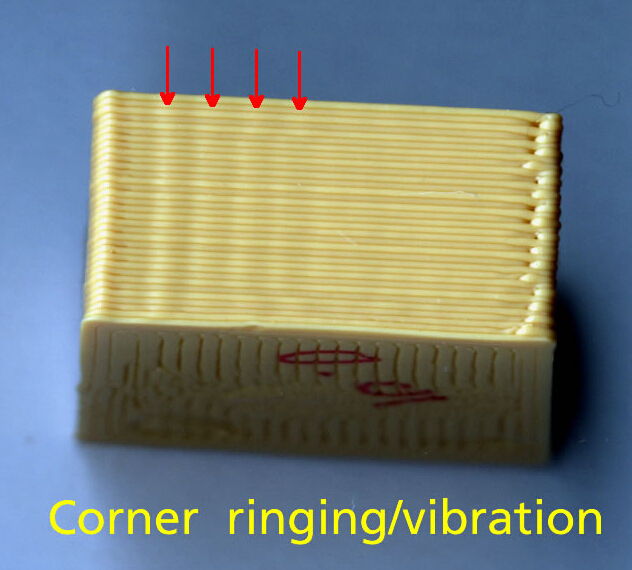

Corner ringing Appears as ripples which rapidly diminish in amplitude

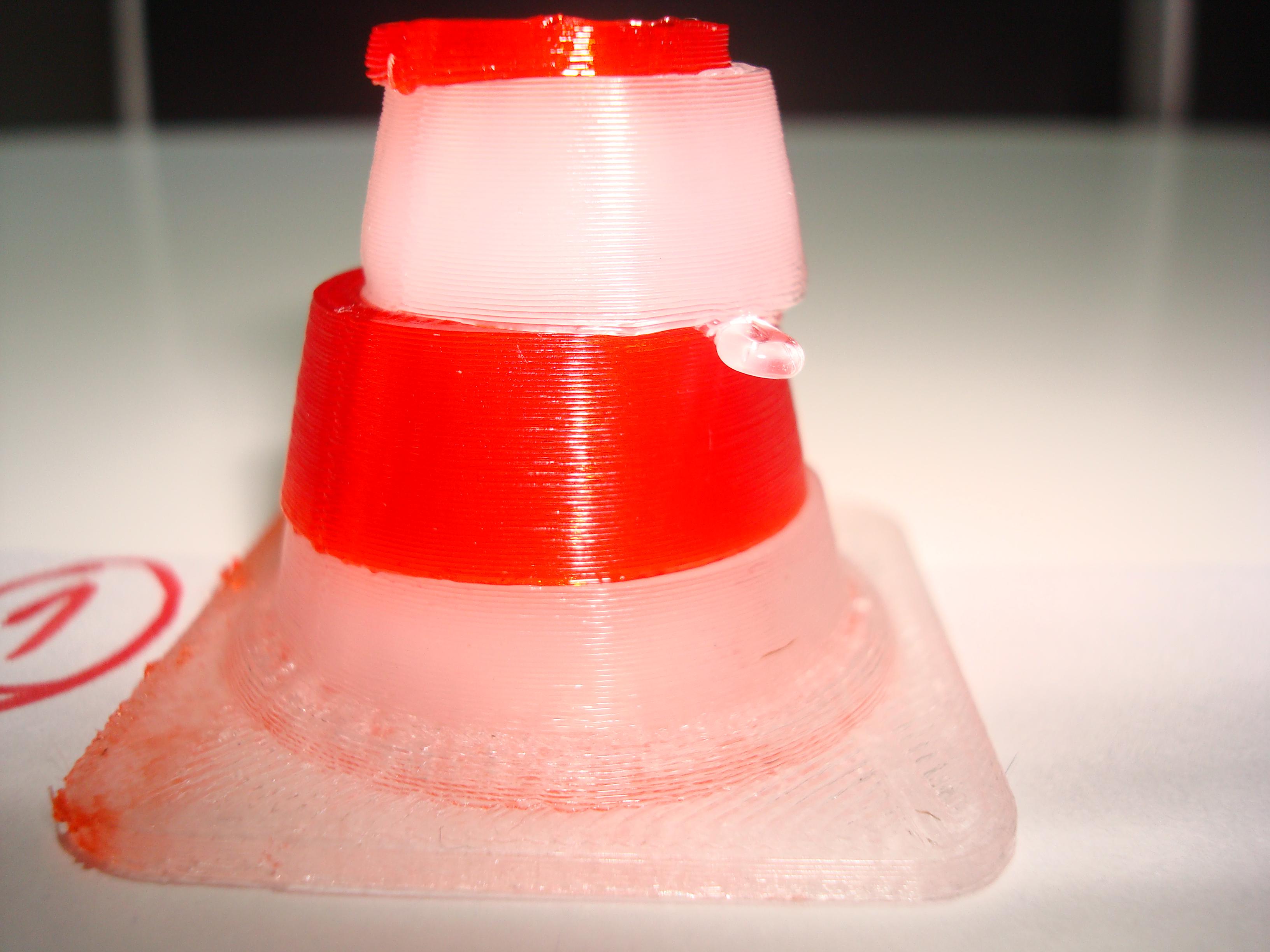

Dual extrusion offset ReplicatorG tool change command bug fix

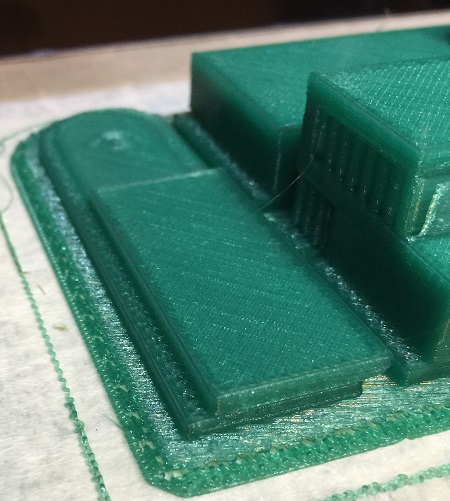

Layer shifts on X-axis 1. Glass is loose or glass installed at wrong side.
2. End-stopper triggered by noise. Always shift to left side.
3. Cool nozzle hit wrapped corner. Heat up both extruder can help.
4. Too fast printing speed. Please slow down to 50% to test.

ref

Released source code

!!! Please note, improperly update firmware may cause machine brick. Do at your own risk!

Check github for stable source code: https://github.com/MalyanSystem

To burn customized code, please reference command:

avrdude -F -V -p m2560 -P COMX -c stk500v1 -b 57600 -U flash:w:filename.hex
